Product ID: 101013425116
Product name: QYYFN (X, M) type submersible pump flat power cable

1. Product introduction
The armored cable protective layer can be added to the cable of any structure to increase the mechanical strength of the cable and improve the corrosion resistance. It is a wire and cable designed for areas that are prone to mechanical damage and extremely susceptible to erosion. It can be laid in any way, and is more suitable for direct burial laying in rocky areas.
2. Product structure:
Solid copper conductor, polyimide-F46 composite film/EPDM combined insulation, nitrile rubber sheath, PTFE or polyester film/fiber cloth tape wrapping, galvanized (stainless steel, Monel) Steel tape armored.

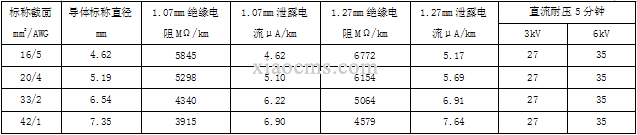

3. Specifications, models and basic parameters

 三、主要性能指标
