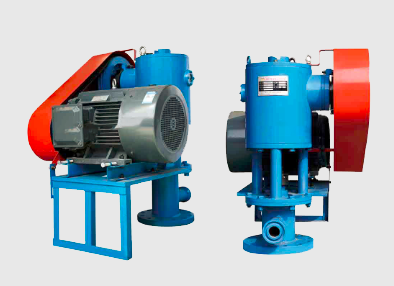

Horizontal transmission drive

     This product has a simple design structure: adopts a two-stage reduction structure of the main drive, that is, the first stage of belt wheel reduction, and the use of tower wheels can achieve reduction ratios of 1.3 and 2.05; the second stage adopts a pair of spiral bevel gears for reduction, and the reduction ratio is 4.625 , And finally achieve a maximum reduction ratio of 9.48, which can meet the supporting use of different types of screw pumps.

    This equipment is easy to operate. After the equipment is installed, there is no need for multiple people to operate. According to the relevant operating instructions, only need to turn on the power and start at low speed until the equipment runs normally.

    It is more convenient in terms of maintenance. Because the second stage adopts gear reduction, the equipment only needs to replace the gears and bearings according to the degree of wear of the gears and bearings during maintenance, and other structures do not need to be repaired or replaced.
